Hanging Pipe Clamp Support

on 10 October 2019. Posted in Structural Engineering

A hanging pipe clamp support is a type of mechanical support used in piping systems to secure and suspend pipes from overhead structures such as beams, ceilings, or other supporting elements. These clamps are designed to prevent the pipes from sagging or moving excessively due to their weight, thermal expansion, or other external forces. Hanging pipe clamp supports play a critical role in maintaining the stability, alignment, and integrity of the piping system. They come in various designs and configurations to accommodate different types of pipes and installation requirements.

See Article - Pipe Support Dont's

key Points about Hanging Pipe Clamp Support

Support and Suspension - Hanging pipe clamp supports are designed to securely hold and suspend pipes from above. They prevent sagging and ensure that the pipes maintain their intended position, preventing issues such as uneven flow, stress, or strain.
Adjustability - Many hanging pipe clamp supports are adjustable to accommodate different pipe sizes and installation conditions. This adjustability allows for flexibility during installation and helps ensure a proper fit.
Thermal Expansion Compensation - Like other pipe supports, hanging pipe clamp supports can accommodate the thermal expansion and contraction of pipes. This is important to prevent excessive stress on the pipes and the support system as temperature changes occur.
Noise and Vibration Reduction - These supports also help dampen noise and vibration that might be transmitted through the piping system, enhancing the overall performance and comfort of the system.

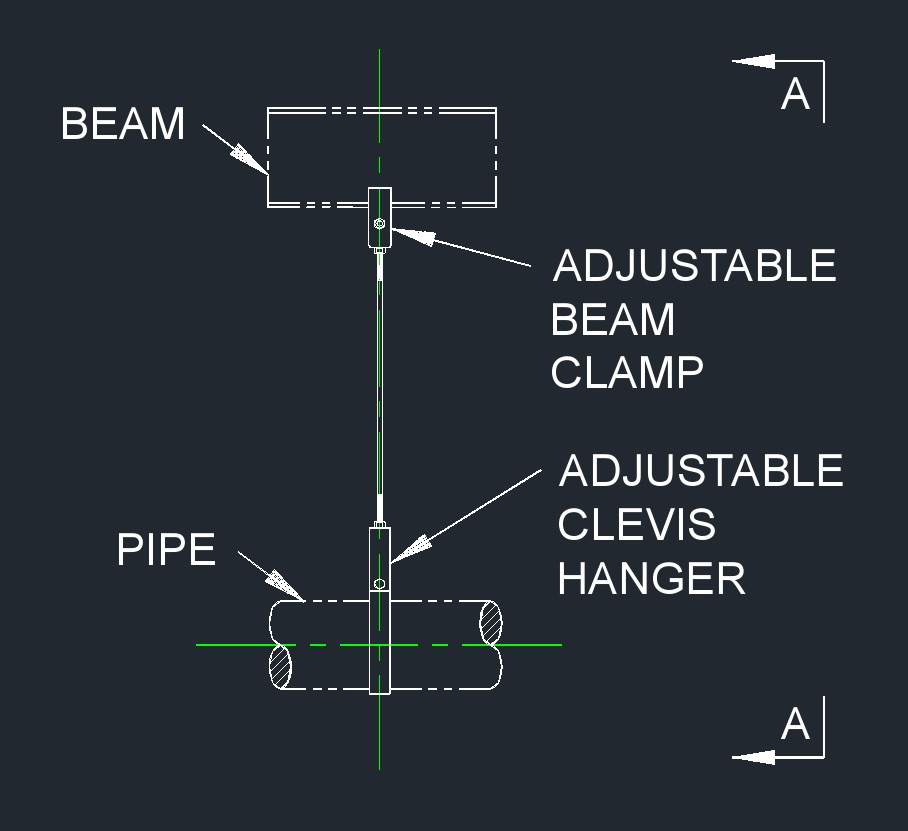

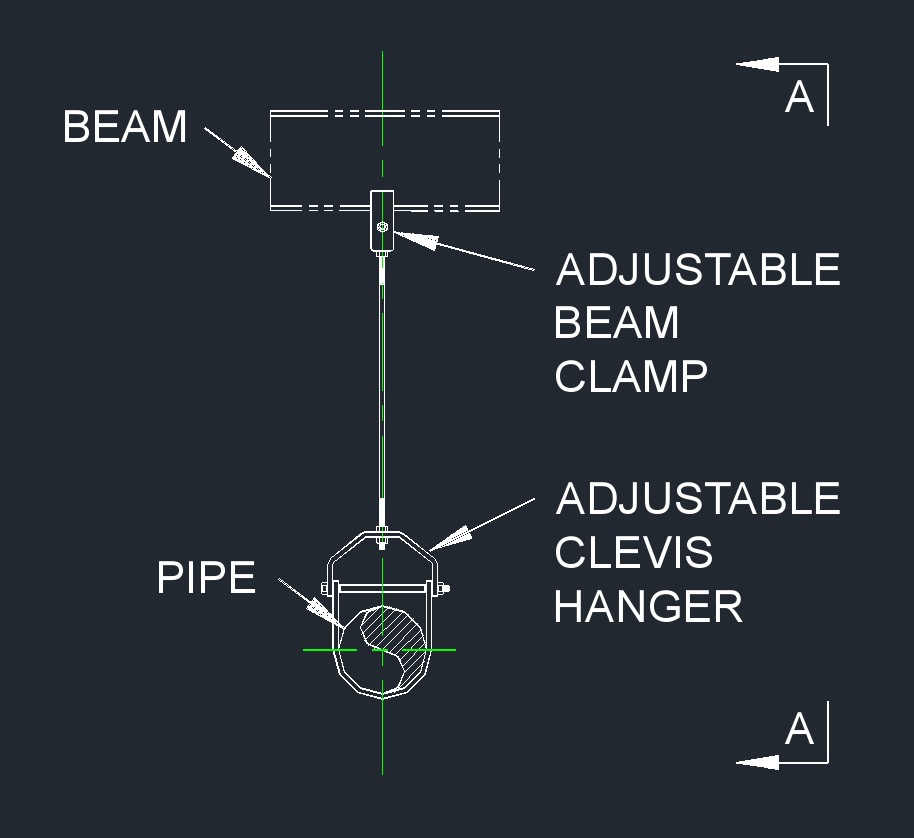

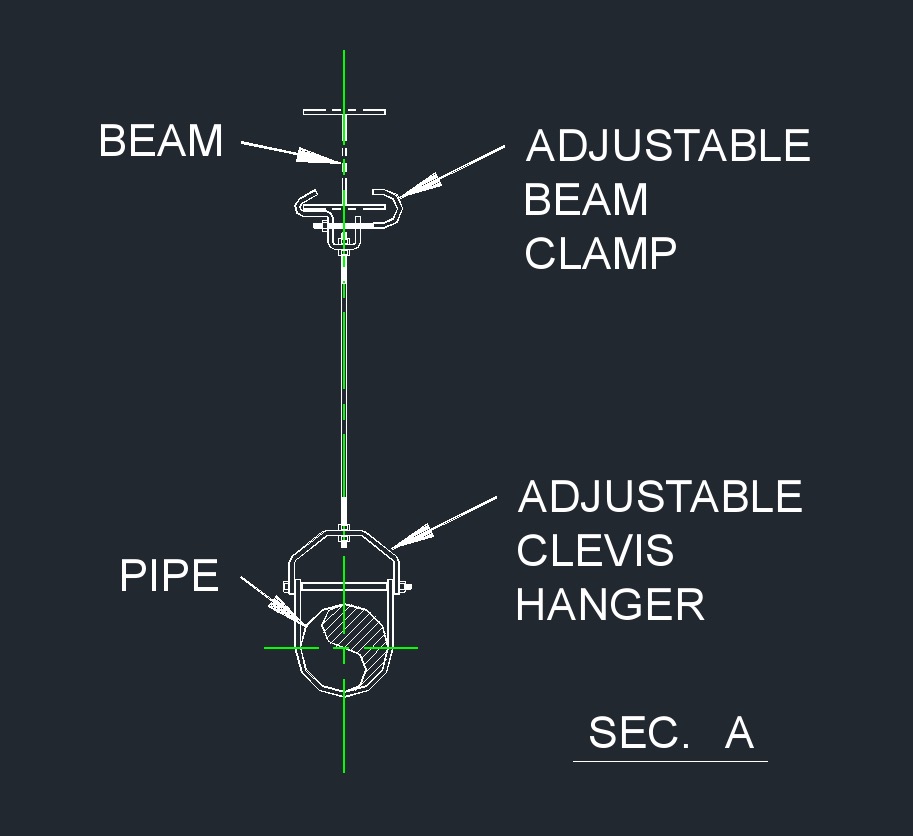

Installation - Hanging pipe clamp supports are typically attached to the overhead structure using appropriate fasteners such as bolts or rods. They are positioned strategically along the length of the pipes to provide even support and prevent sagging.
Material and Coating Options - These supports are often made from materials such as metal, stainless steel, or various types of plastics, depending on the application's requirements. Some supports might also have coatings or linings to protect against corrosion in corrosive environments.
Variety of Designs - Hanging pipe clamp supports come in different designs, including one-piece clamps, split clamps, and various configurations to accommodate different pipe orientations and sizes.

It's important to properly design and install hanging pipe clamp supports based on factors such as the pipe material, operating conditions, weight, temperature variations, and overall piping system layout. Proper engineering practices are crucial to ensure the safety, integrity, and longevity of the piping system.
