Check valves, abbreviated as CV, are valves that are designed to allow the process fluid to flow in only one direction to prevent backflow.  Check valves are also known as non-return valves, clack valves or one-way valves.

They are self-acting, meaning they operate automatically and do not require any outside inputs for it to operate.  This means that they will keep working if the processing plant loses electricity or instrument air. When operating properly, the valve is kept open by the force developed by the velocity in the line.  When the flow stops or reverses, the valve closes.

These valves are opened, and kept in the open position, by the forces developed by the velocity.  When the flow rate slows or stops, the valve closes.  The seating load and tightness is dependent upon the amount of back pressure.



Check Valve Types

  • Back Pressure Check Valve  -  They are normally closed valves.  The mechanism is spring loaded to hold the valve in the closed position and stops the possibility of flow through the system.  When flow starts into the container, pressure overcomes the spring force and opens the check.  As soon as flow stops or reverses, the check closes.  They can have regulators in which the pressure can be adjusted to the desired flow.  The action prevents the escape of the contents in the event of accidental breakage of the piping or fittings.  These check valves may also be installed in piping where flow must be limited to one direction.

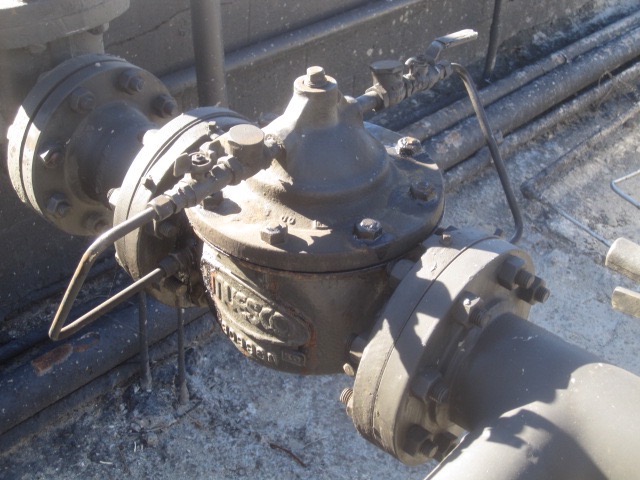

v89127















  • Ball Check Valve  -  Much like a swing check valve but instead of having a gate or guided disk, uses a ball to control flow.  The ball is inside the body and free to rotate on the seat moving up and down inside the valve.  The seat is machined to fit the ball, and the chamber is conically shaped to guide the ball into the seat to seal and stop a reverse flow.  It is possible to choose a lighter ball if the pump capacity is not sufficient, and if water hammer occurs when the pump stops. It may be solved by selecting a heavier ball.  This valves is often preferred for use in pumping stations that are rarely attended, since they demand only limited maintenance.
  • Diaphragm Check Valve (membrane valve)  -  These valves are made up of a valve body with two ports, a diaphragm and a seat.  The diaphragm rests upon the seat in order to close the valve.  A self-centering disc or rubber flexing diaphragm acts as the mechanism for preventing reverse flow.  As inlet pressure increases, the diaphragm opens and allows the substance to flow through.  While default open diaphragm valves don’t require any cracking pressure due to the free floating elastomeric diaphragm, valves that default to a closed state rely on inlet pressure to counter the fixed diaphragm’s elasticity.
  • Dual Plate Check Valve  -  A single-piece body construction with two spring-loaded plates hinged on a middle hinge pin.  The plates close by the action of the torsion spring before flow reversal takes place when the flow is reduced.  A dual plate check valve is lighter and more compact than a conventional swing check valves.  This valve takes less space in a pipe run where space could be a problem and can be installed in a horizontal or vertical up positions.  With a spring loaded, dual plate design and the discs open 85°, it ensures a low pressure drop with very low cracking pressure.  The valve has positive sealing under most conditions and closes before the flow reverses at zero velocity.  With the spring to assisted in closing, water hammer is pretty much eliminated.  The way the valve is designed it is fundamental non-slamming because the plates closing before the product flow reverses.
    • Wafer  -  Placed between two flanges with bolting around the outside of the valve.
    • Lug  -  Clamped between flanges with the bolting passing through the body of the valve.
    • Flange  -  Installed the same way any other flanged valve is, studs and nuts per flange.
  • Lift Check Valve  -  A check valve that is very much like a piston check valve where the flow lifts a disk when the valve is open.  The upstream side of the lift check is under the disk and the flow flows up through the disk.  Spring loaded lift check valves can be installed in the piping in almost any mounting position.  Compared with swing check valves their head losses, are higher as the deflection of the flow is much more significant.  Lift check valves are preferred when applications require smaller nominal diameters.
  • Nozzle Check Valve  -  This valve is designed specifically for  fluid, gas, or slurry is pumped in a low pressure or otherwise intermittent flow.  They are meant to close quickly and quietly during low pressure and no-flow periods, and can be used to prevent the liquid, gas, or slurry from flowing in the reverse direction.  The shutoff mechanism is a disc, which is held against the seat by an internal spring.  When the pressure against the disc at the inlet overpowers the closing force of the spring, the spring compresses.  When the fluid flow slows or stops, the spring automatically closes the valve.

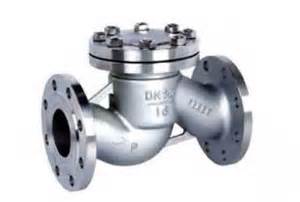

  • Piston Check Valve  -  This type of valve does not need an actuator or valve operator.  A piston check valve is designed with a cylinder and a piston providing cushioning effect when the valve is operating.  Guides help to alignment of the disc and seat configuration when the piston closes.  The fluid flow rate and pressure forces the valve disc to float on the seat which then allows fluid to pass through the valve. The valve closes when the fluid tries to reverse the direction of flow in which the disc is assisted by its weight and gravity
  • Stop Check Valve  -  This valve is essentially, two valves built into one.  A spring loaded y-check valve or a lift check valve with a manual override feature.  An external mechanism can be used to maintain the valve in an open or closed position.  A stop check valve can function as two valves in one, a flow regulating valve and a backflow preventing valve.  They are commonly used in power plants, boiler circulation, steam generators, turbine cooling, and safety systems.
  • Swing Check Valve  -  It is inexpensive and simple to operate and repair.  This valve consists of a valve body, a cover, and a disk that pivots about a hinge pin.  The disk swings away from the valve seat.  This allows the flow to move in the forward direction, and it moves back to valve seat when upstream flow is stopped.  The disc in a swing check valve has no guidesd as it fully opens or closes.  The siwng check valve allows full, unobstructed flow and automatically closes as pressure decreases.  These valves are fully closed when flow reaches zero, in order to prevent backflow.
  • Tilting Disk Check Valve  -  Is a check valve where the disc has a pivot point at the center of the disc.  It is also known as a tilt check valve or a tilting disk check valve.  In this self actuated valve, valve disk lifts off of the seat to open the valve.  The design of the disk allows it to float on the flow.  Valve disk stops built into the body position the disk for optimum flow characteristics.  A large body cavity helps to minimize flow restriction.  As flow decreases, the disk starts closing and seals before reverse flow occurs.  The back pressure against the disk moves the seat for tight shutoff without slamming.  If the reverse flow pressure in the valve is insufficient to cause a tight seal, the valve may be fitted with an external lever and weight.





Check Valve advantages

  • Quick to react.
  • Control valves prevent the water hammer impact.
  • Capable of withstanding both high and low pressures.
  • A low pressure drop triggered by control valves helps to save electricity.
  • These valves stop chattering.
  • Check valves cause a decrease in downtime.
  • Prevent low output due to valve failure.
  • There are only a few moving pieces.
  • The risk of valve failure by check valves is significantly reduced.
  • Equipment such as pumps and compressors are secured from damage due to backward flow by control valves.
  • Since they have smaller mobile modules, control valves have low maintenance costs.
  • The footprints are smaller in more recent models of check valves than traditional control valves.
  • Without many modifications and mod mods, check valves can be used interchangeably.



Check Valve Disadvantages

  • The internal parts of a check valve cannot be assessed.
  • Check valves have certain limitations on installation configurations.
  • A valve disc can sometimes stay stuck in an open position, and this can cause problems.



Check Valve Design Considerations

The following design considerations are offered in the specification of check valves for typical process plant applications:

  • While it may be tempting to add a check valve directly to a valve to eliminate a weld during fabrication.  While a weld is eliminated, it makes assembly more difficult. When two valves are connected flange-to-flange, the valve bodies make it difficult to insert the bolt into the bolt hole.
  • Do not use check valves in vertical lines the flow is downward.  In this configuration, the valve won’t close and it loses the ability to do its job properly.
  • Dual and single-plate wafer check valves should not be used for reciprocating compressor or reciprocating pump applications.  The pulsation can lead to pulsation induced fatigue which will cause the spring to fail prematurely.
  • Ball or piston check valves should not rely only on flow reversal to close the valve.  These types of check valves should either use gravity to assist closure (vertical orientation, flow up) or use a sprint to assist closure.
  • Lift check valves should not be used in services subject to fouling, coking deposits, or erosion.
  • A check valve should never be used as an isolation valve. Ever.
  • Consideration should be made for isolation and gauges to periodically check whether or not the check valve is functioning as intended.
